Free shipping dual channel DSCope ultra portable oscilloscope 50M bandwidth 200M sampling USB power supplya
  • Selleren.myhomeshop.co
  • Price ofUS$119.99
  • Your PriceUS $110.39
  • ShippingFree Shipping
  • Discount% off
  • Ratings4.6 (264)

Image Details

Free shipping dual channel DSCope ultra portable oscilloscope 50M bandwidth 200M sampling USB power supplya - 1Free shipping dual channel DSCope ultra portable oscilloscope 50M bandwidth 200M sampling USB power supplya - 2Free shipping dual channel DSCope ultra portable oscilloscope 50M bandwidth 200M sampling USB power supplya - 3Free shipping dual channel DSCope ultra portable oscilloscope 50M bandwidth 200M sampling USB power supplya - 4

Product Details

Free shipping Mobile Phone Repair Tools Kit Spudger Pry Opening Tool Screwdriver Set for iPhone iPad Samsung Cell Phone Hand Too
Free shipping Mobile Phone Repair Tools Kit Spudger Pry Opening Tool Screwdriver Set for iPhone iPad Samsung Cell Phone Hand Too
11.49
 Free shipping Newest CPS -3205II precision Compact mini Digital Adjustable DC Power Supply 32V5A 110V-230V 0.01V/0.001A
Free shipping Newest CPS -3205II precision Compact mini Digital Adjustable DC Power Supply 32V5A 110V-230V 0.01V/0.001A
69.99
KQCPET6 V6 Upgraded Multifunction Laptop And Desktop PC Universal Diagnostic Test Debug Support PCI,PCI-E,LPC,Mini PCI E
KQCPET6 V6 Upgraded Multifunction Laptop And Desktop PC Universal Diagnostic Test Debug Support PCI,PCI-E,LPC,Mini PCI E
18.99
2016 Newest 715 model BGA stencil Templates Direct Heating Reballing stencil+Reballing Jig For Chip Rework Repair Soldering Kit
2016 Newest 715 model BGA stencil Templates Direct Heating Reballing stencil+Reballing Jig For Chip Rework Repair Soldering Kit
66.99
FreeShipping 14PCS/Lot JY BLACK Lead-Free Soldering Solder Iron Tips 900M-T-K for Hakko 936 fx888/888D SAIKE 909D/852 CXG 936d
FreeShipping 14PCS/Lot JY BLACK Lead-Free Soldering Solder Iron Tips 900M-T-K for Hakko 936 fx888/888D SAIKE 909D/852 CXG 936d
9.99
Highspeed 30 frames no move ghosting 13MP HDMI VGA Industrial Microscop Camera+130X lens+LED light+stand holder+8" LCD Monitor
Highspeed 30 frames no move ghosting 13MP HDMI VGA Industrial Microscop Camera+130X lens+LED light+stand holder+8" LCD Monitor
162.99
Free shipping EU plug YiHua 908D soldering iron station +8858I Hot air station Adjustable Constant temperatur
Free shipping EU plug YiHua 908D soldering iron station +8858I Hot air station Adjustable Constant temperatur
42.99
Free Shipping High Quality 5pcs/lots 5/10/20/30/50mm X 33m High temperature tape BGA Heat Resistant Polyimide
Free Shipping High Quality 5pcs/lots 5/10/20/30/50mm X 33m High temperature tape BGA Heat Resistant Polyimide
13.89

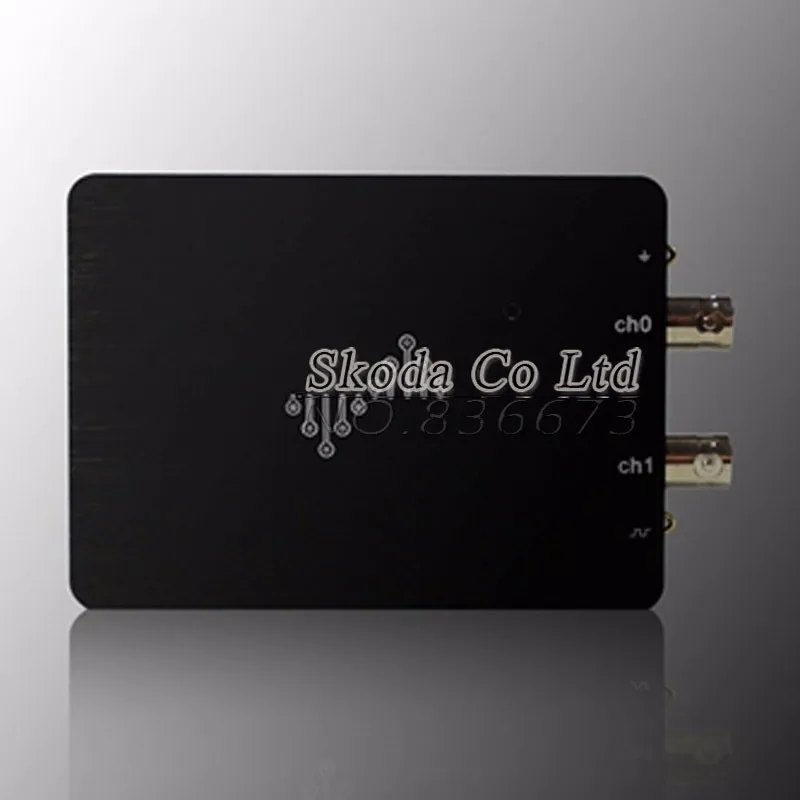

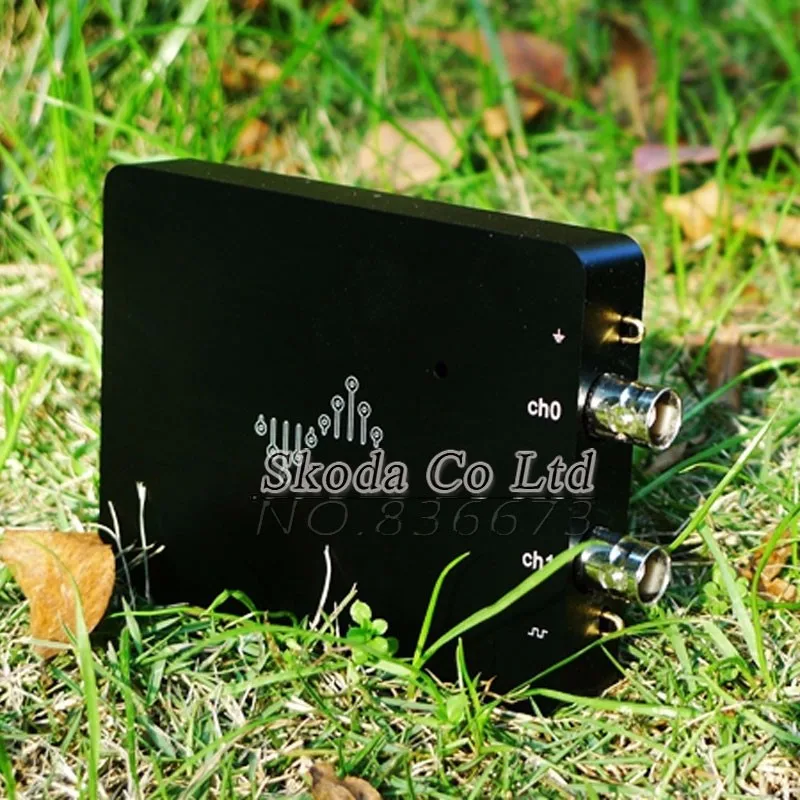

DSCope is a USB - -based oscilloscope.Sampling part of the same based on Xilinx Spartan - 6 + FPGA architecture of SDRAM, analog front end the difference signal and the structure of the variable gain amplifier, provide 50 MHZ analog bandwidth, as well as the maximum 200 MHZ single channel sampling frequency.
The main technical indicators are as follows:
Analog bandwidth: 50 MHZ
Maximum sampling rate: 200 MHZ @ 1 Channel / 100 MHZ @ 2 Channels
Real-time sampling depth: 1 m
A single sampling depth: 32 m @ 1 Channel / 16 m @ 2 Channels
Input channel number: 2 Channels
Vertical sensitivity: 10 mv/div ~ 2 v/div (x1 probe) / 100 mv/div ~ 20 v/div (x10 probe)
Input coupling way: AC/DC/Ground
Input features: 1 M Ω / ~ 15 pF
Overvoltage protection scope: + 100 V (DC + AC peak)
DSCope analog front-end circuit adopts fully differential structure.Compared with single-ended structure has a prominent common-mode noise and power supply noise suppression capability, as well as reduce EMI interference.Make the reduction of measured signal can be more real. aeProduct.getSubject()

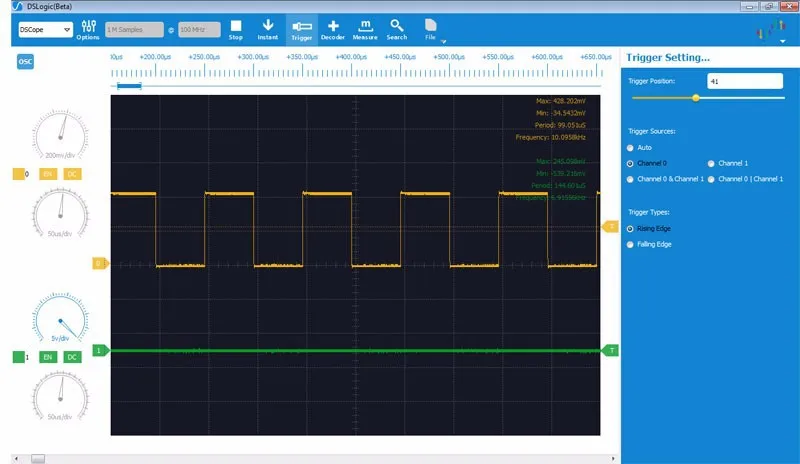

DSCope analog front-end circuit of fully considering the gain bandwidth flatness.Guarantee of arbitrary frequency component in the bandwidth at the same gain.In observing the digital signal, can better restore jump along the digital signal, are more likely to make correct judgment for signal quality.
aeProduct.getSubject()aeProduct.getSubject()

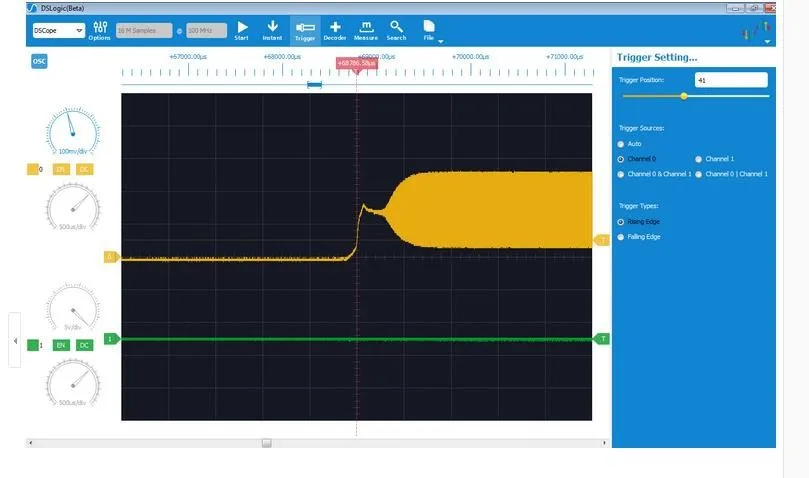

DSCope with real-time sampling storage depth of 1 m.Storage depth determines the oscilloscope ability to analyze the phenomenon of high frequency and low frequency at the same time, including the low speed signal of high frequency noise and high speed signal of low frequency modulation.As for the importance of the oscilloscope used students should be very clear.DSCope original super long storage depth (16 m / 32 m) of a single trigger sampling function.Make observations collected at the same time waveform of the whole process and the details of the specific time point is possible.Below for DSCope sampling to passive crystals on electricity and vibration of the whole process.

aeProduct.getSubject()

DSView DSLogic/DSCope using the same PC software, also based on open architecture

aeProduct.getSubject()

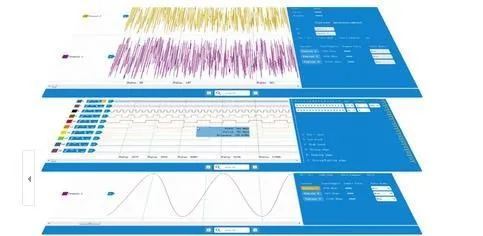

DSView supports multiple model, logic analyzer/oscilloscope data recorder, etc.On the connection of different hardware devices automatically jump to the corresponding operation mode.For example, when DSLogic after connect to PC, DSView will automatically activate the interface of logic analyzer;After the DSCope connected to the PC, DSView will automatically switch to the oscilloscope operating interface.

aeProduct.getSubject()

Switch between DSView support multiple devices.On a PC can be connected to many sets of DSLogic equipment at the same time, or DSCope equipment, or DSLogic + DSCope device (depending on the PC a few USB interface).DSView can manage these devices at the same time, only need to click the mouse can switch to connect at will on any device.This enables the use of simple more DSLogic and DSCope equipment to expand the number of channels.

Part List:

DSCope module: x1
USB cable: x1
P6100 probes: x2





aeProduct.getSubject()aeProduct.getSubject()
